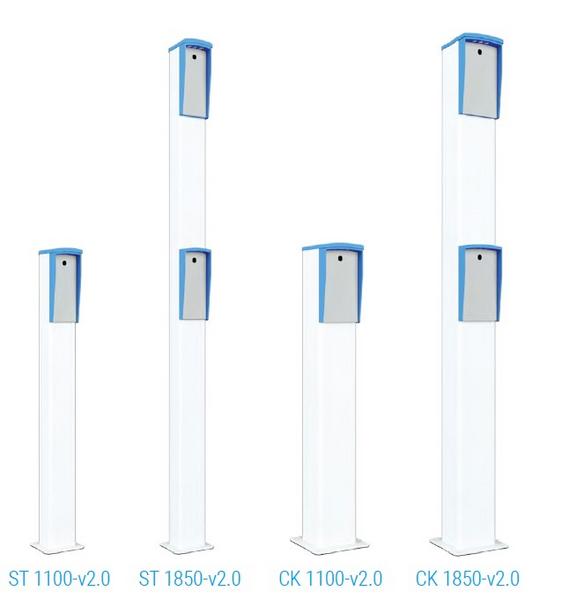

ELKA ST 1100-v2 Standard Vehicle Access Control Pedestal


ST 1100-v2 pedestal for key switch, magnetic card reader, intercom, etc. with removable front mounting plate via key lock


Dimensions: mm (Inch)


Outside: (W x L x H)

80 (3.15") x 100 (3.94") x 1,100 (43.30")


Front Mounting Plate Space: (W x H x D)


80 (3.15") x 175 (6.90") x 160 (3.15")


Click here to download Product Info Sheet

​Click here to download installation manual

​​ELKA ST 1850-v2 Trucks, buses, cars Access Control Pedestal


ST 1850-v2 dual pedestal for 2 key switches or 2 magnetic card readers, intercom, etc. with removable front mounting plate via key lock. Ideal for trucks, buses, cars, etc.


Dimensions: mm (Inch)


Outside: (W x L x H)

80 (3.15") x 100 (3.94") x 1,850 (72.83")


Front Mounting Plate Space: (W x H x D)


Top :     80 (3.15") x 175 (6.90") x 160 (3.15")

Bottom: 80 (3.15") x 175 (6.90") x 160 (3.15")​

​​Click here to download Product Info Sheet
​Click here to download installation manual


​​​​ELKA PKW/LKW 2400-v2 Trucks, buses, cars Access Control Pedestal​

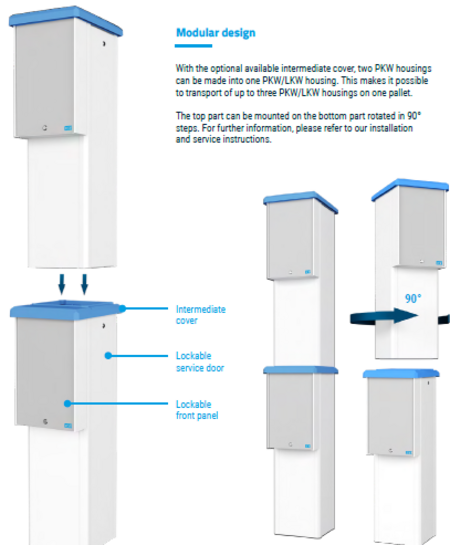

With the optional available intermediate cover, two PKW 1200-v2 housings can be stacked to allow trucks, busses, or other high vehicles to conveniently use the access control solution of your choice.
tFor further information, please refer to our installation
and service instructions.


Dimensions: mm (Inch)


Outside: (W x L x H)

379 (15.00") x 486 (19.13") x 2,386 (94")

​​

Front Mounting Plate Space: (W x L x H)


​Top :      ​330 (13.00") x 250 (9.84") x 195 (7.68")
Bottom: ​330 (13.00") x 250 (9.84") x 195 (7.68")


Click here to download Product Info Sheet
​Click here to download installation manual



ELKA Parking Access Control Housings and Pedestals

Features:

  • Non corrosive aluminum construction
  • Powder coated material
  • Light weight
  • Control columns available to meet individual needs
  • Columns for personal vehicles
  • Columns for trucks
  • Housings for combination of personal vehicles and trucks
  • Small to large footprint
  • Easy install of peripheral devices such as intercoms, card reader, etc.
  • As per request we can install the peripherals for you
  • Design matches barrier gate operator


Products:


  • ​Gated entry applications
  • Parking applications
  • ​Card reader pedestal housing
  • Card reader stanchions
  • Intercom Housing
  • Intercom Pedestal
  • Access Control Housing



ELKA CK 1100-v2 Standard Vehicle Access Control Pedestal


CK 1100-v2 pedestal for key switch, magnetic card reader, intercom, etc. with removable front mounting plate via key lock


Dimensions: mm (Inch)


Outside: (W x L x H)

145 (5.71") x 145 (5.71") x 1100 (43.30")



Front Mounting Plate Space: (W x H x D)


125 (4.92") x 140 (5.50") x 175 (6.90")


Click here to download Product Info Sheet
​Click here to download installation manual​

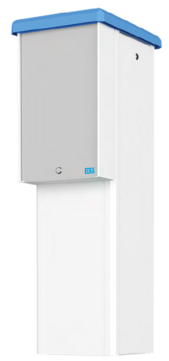

​​ELKA PKW 1200-v2 Vehicle access control cabinet

The high-quality aluminum housing offers plenty of space for additional installations, additional service doors,

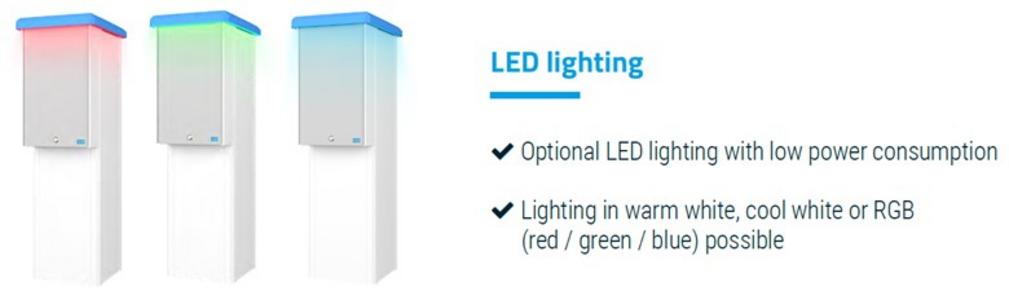

optional modern LED lighting and makes on-site installation easier in a completely new way. A flexible concept
with modular design and clear cable management.


Dimensions: mm (Inch)


Outside: (W x L x H)

379 (15.00") x 486 (19.13") x 1,200 (47.24")


​​

Front Mounting Plate Space: (W x L x H)


​250 (9.85") x 400 (15.75") x 450 (17.71")

​Click here to download Product Info Sheet
​Click here to download installation manual​



ELKA Vehicle Barrier Gate

Aluminum Housings and Pedestals designed for use in parking, access control and gated entry applications. Our product family of Parking Access Control Columns Pedestals offer a variety of options for your vehicle access control needs. Our Parking Access Control Columns Pedestals product family is designed to withstand the harsh vehicle parking environment while providing the installer with a convenient method to implement the peripheral equipment such as access control readers, intercoms, and other devises used to allow access to gated facilities.

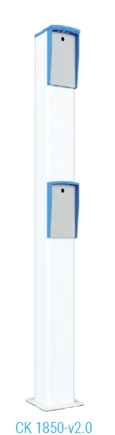

​​​ELKA CK 1850-v2 Trucks, buses, cars Access Control Pedestal​

ST 1850-v2 dual pedestal for 2 key switches or 2 magnetic card readers, intercom, etc. with removable front mounting plate via key lock. Ideal for trucks, buses, cars, etc.


Dimensions: mm (Inch)


Outside: (W x L x H)

350 (13.78") x 300 (11.81") x 2250 (88.60")

​​

Front Mounting Plate Space: (W x L x H)


​Top :      ​330 (13.00") x 250 (9.84") x 195 (7.68")
Bottom: ​330 (13.00") x 250 (9.84") x 195 (7.68")


Click here to download Product Info Sheet
​Click here to download installation manual
